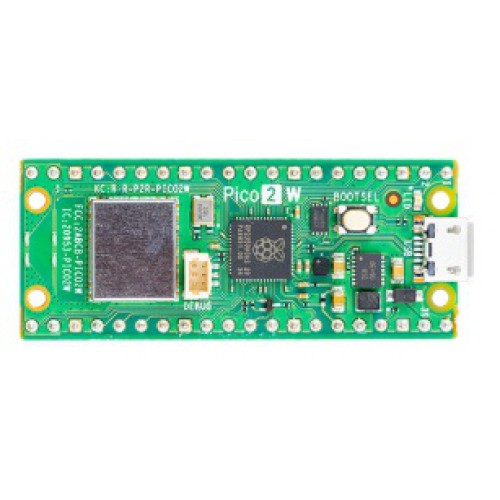

Raspberry Pi Pico 2WH
Meer informatie: https://www.raspberrypi.com/documentation/microcontrollers/pico-series.html
Key features
Raspberry Pi Pico 2 W and Pico 2 W with headers offer the same key features as Raspberry Pi Pico 2 and Pico 2 with headers, but with added wireless functionality. Specifically, Raspberry Pi Pico 2 W and Pico 2 W with headers offer the following key features:
RP2350 microcontroller chip, including:
A choice of CPU architectures that can run tasks in parallel. For more information, see Architecture switching:
Dual-core Arm Cortex-M33.
Dual-core Hazard3 RISC-V processor.
Flexible clock running up to 150 MHz.
520 kB of SRAM.
USB 1.1 controller and PHY with device and host support.
Low-power sleep and dormant modes.
Accurate clock and timer.
Temperature sensor.
Twelve Programmable I/O (PIO) state machines for custom peripheral support.
Flexible, user-programmable high-speed I/O.
Can emulate interfaces such as SD card and VGA.
Board features:
Drag-and-drop programming using mass storage over USB.
4 MB of on-board flash memory.
26 multi-function GPIO pins. For more information, see Non-wireless board layout.
Hardware and software compatibility with Raspberry Pi Pico 1.
Two timers with 4 alarms, and an AON timer.
Debug connector. For more information, see Debug connector (SWD).
Peripheral interfaces:
Two SPI
Two I2C
Two UART
Three 12-bit ADC
16 PWM channels
Wireless connectivity:
Wi-Fi (802.11n):
Single-band (2.4 GHz).
WPA3, a modern security protocol for wireless connectivity.
Soft access point for broadcasting a Wi-Fi network, supporting up to four clients.
Bluetooth 5.2:
Support for Bluetooth Low Energy (BLE) Central and Peripheral roles.
Support for Bluetooth Classic.
Raspberry Pi Pico 2WH
- Model: VNGARDRP-P-2W
- Beschikbaarheid: Op voorraad
-
€ 10,95
- Excl. BTW: € 9,05
